We are one of the leading manufacturers and suppliers of the highest quality Concentrator Separators, which are manufactured using the finest quality raw material to ensure quality of products and customers’ satisfaction. These products are machined according to customers’ needs and requirements of customers following international quality guidelines for perfection of high capacity Concentrator Separators. Our reliable, durable and the best performing products are available in the market at market leading prices.

Application

Permanent Magnetic Concentrator Separator is extensively used for advancing or concentrating material containing a very high percentage of magnetic or where magnetic/mechanical agitation is required for the separation of many difficult materials. It is perfect for the improving Sponge Iron/Cast Iron borings, Steel/Brassl Aluminium turnings, Chips and for mineral beneficiation application such as the purification of dry ceramic and refractory materials, reclamation of abrasive grains, removal of iron contamination from chemical powders and grains and for many other such applications requiring maximum separation with minimum production loss etc.

Description

The Separator basically consists of:

• An electromagnetic Vibratory Feeder (with sub-hopper) which provides step less regulation of feed for even flow.
• Two Conveyor belts The Upper belt running ahead of the lower conveyor belt and in the same direction.
• Permanent Magnet unit for picking Tramp Iron.
• Magnetic and Non-Magnetic collection Hopper
• The Drive.
• The Supporting Structure.

The material to be treated is fed from the vibratory feeder on to lower belt where after traveling a short distance it comes under the belt conveyor. The upper belt conveyor runs under a series of powerful Permanent Magnets arranged in such a manner so that the material is exposed during its travel through a number of magnetic fields of alternating polarity. Due to the continuous repetitive agitation of the material nonmagnetic material falls back on to the lower conveyor belt, while the magnetic material is retained on the upper conveyor belt due to the force of magnetic attraction. The separated material are carried and deposited into the respective magnetic and non-magnetic discharge chutes.

Manufacturing Range:

• The Separator is available in a wide range of sizes and capacities upto approx. 100 TPH and 650mm belt width upto 2000mm belt width.
• Options Available at Extra Price.
• A variable speed drive motor can be furnished in place of the slandered constant motor if varied products are to be handled.
• The built-in feeder and motor starter can be furnished separately for remote mounting where remote control is desired.
• Multiple-stage units can be supplied for unusually difficult materials.
• Other sizes on request.

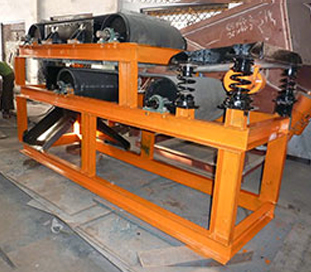

Belt Magnetic Concentrator
